Description
Before any of our shocks reach production, they’ve had to stand the test of time and live up to incredible abuse
by the fastest athletes in racing.
We push the boundaries to give you that same precise control and race-proven performance you can feel.
Our complete line of bolt-on, Factory
Series coil-over shocks provide improved damping in any terrain.

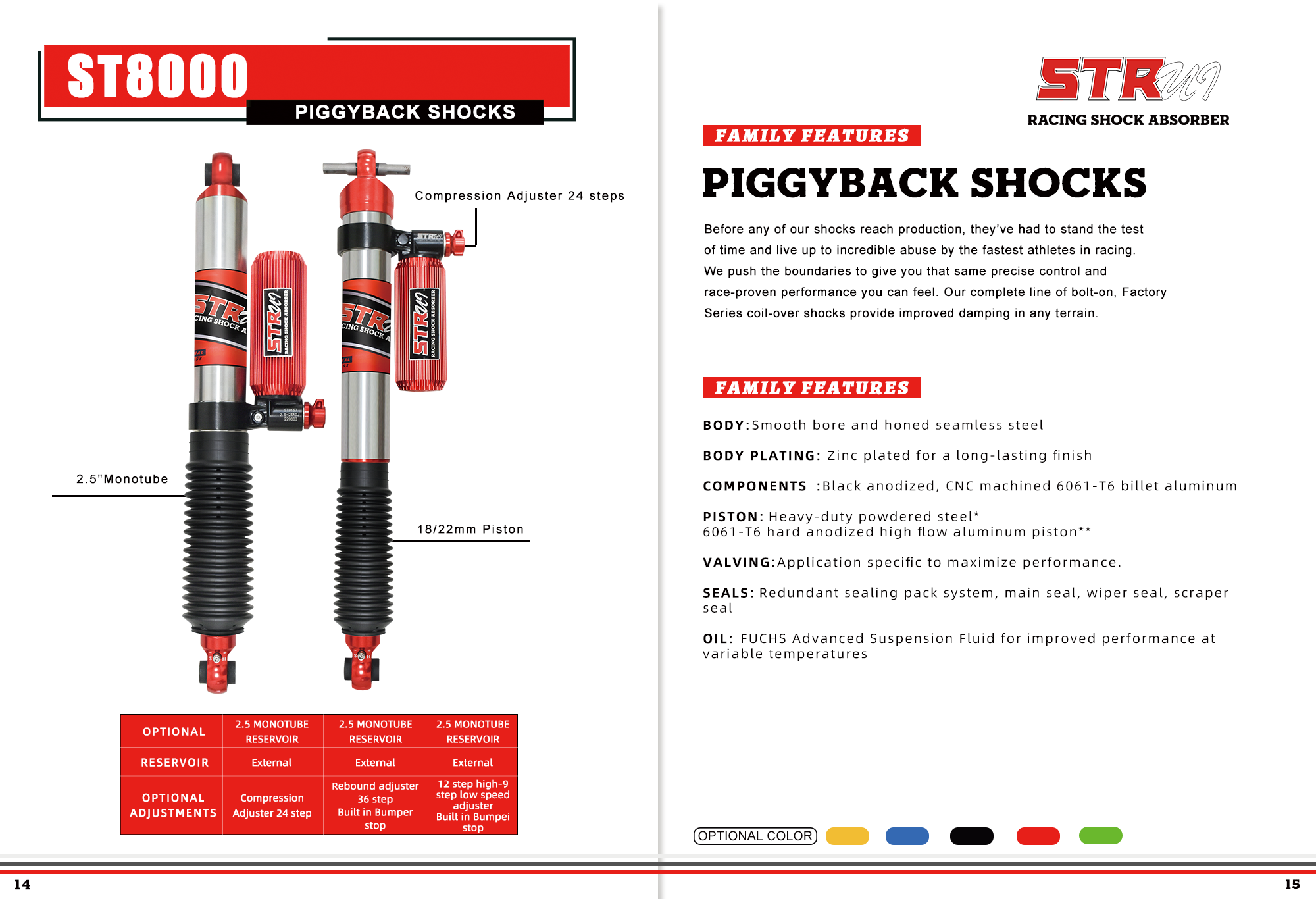

FAMILY FEATURES
BODY: Smooth bore and honed seamless steel
BODY PLATING: Zinc plated for a long-lasting finish
COMPONENTS: Black anodized, CNC machined 6061-T6 billet aluminum
SPRING :Application specific adjustable 3.0" racing spring
PISTON: Heavy-duty powdered steel*
6061-T6 hard anodized high flow aluminum piston**
VALVING: Application specific to maximize performance.
‘SEALS: Redundant sealing pack system, main seal, wiper seal, scraper seal
OIL: FOCHS Suspension Fluid for improved performance at variable temperatures
Optional:
2.0 Monotube RESERVOIR
2.25 Monotube RESERVOIR
2.5 Monotube RESERVOIR
2.25 COIL OVER RESERVOIR
2.5 COIL OVER RESERVOI
Reservoir:
External
External
External
External
External

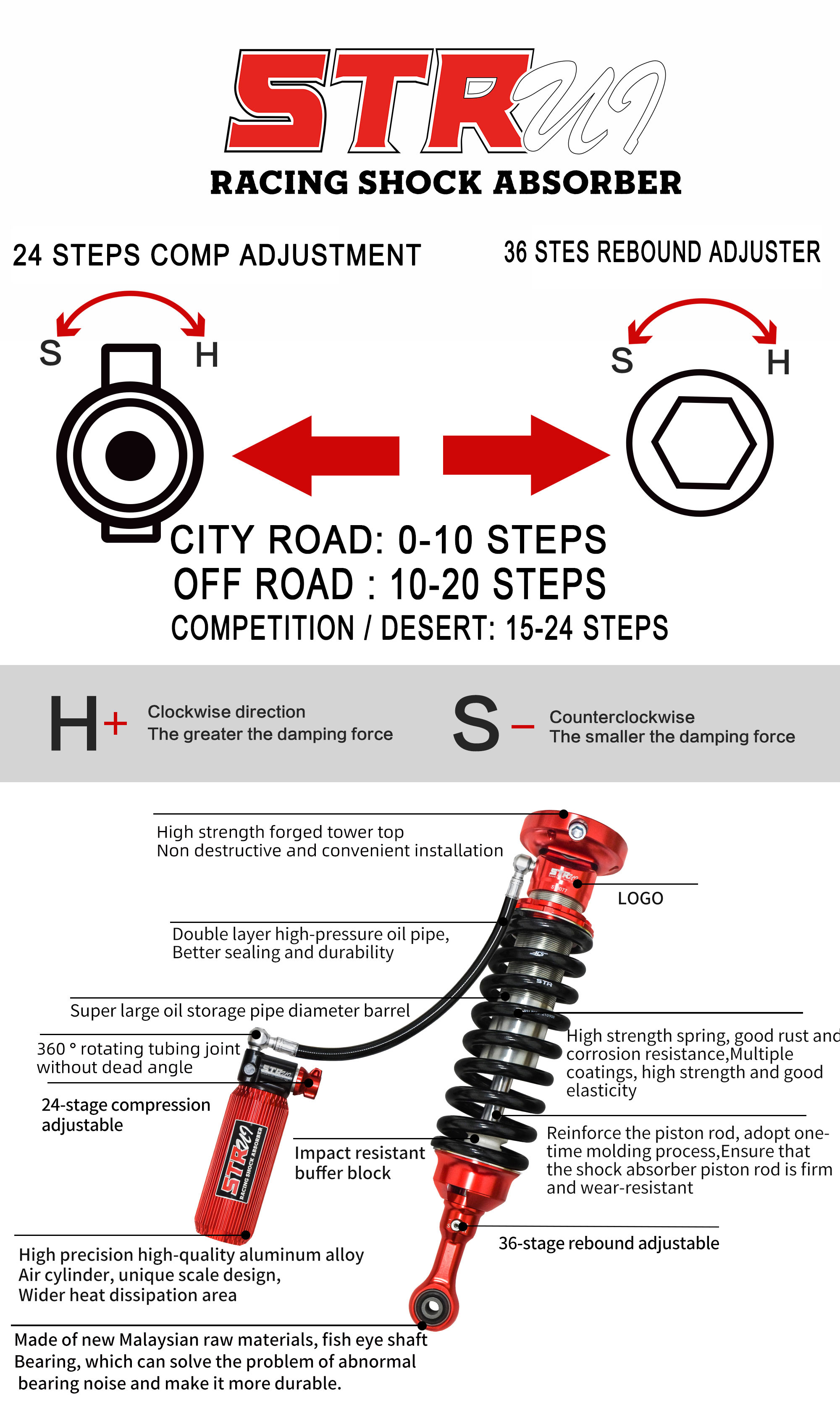

Optional adjustment:
None adjustment
Compression 8 steps adjuster
Compression 24 steps adjuster
Rebound adjuster 36 step
12 step high - 9 step low speed adjuster
